Product Introduction

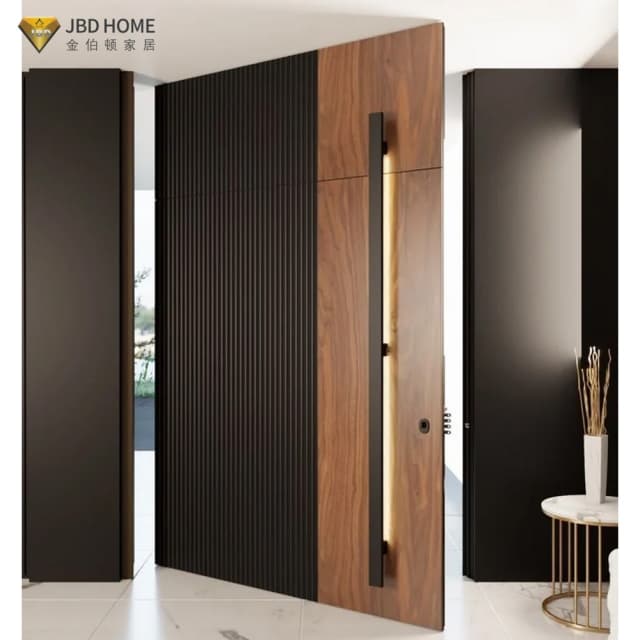

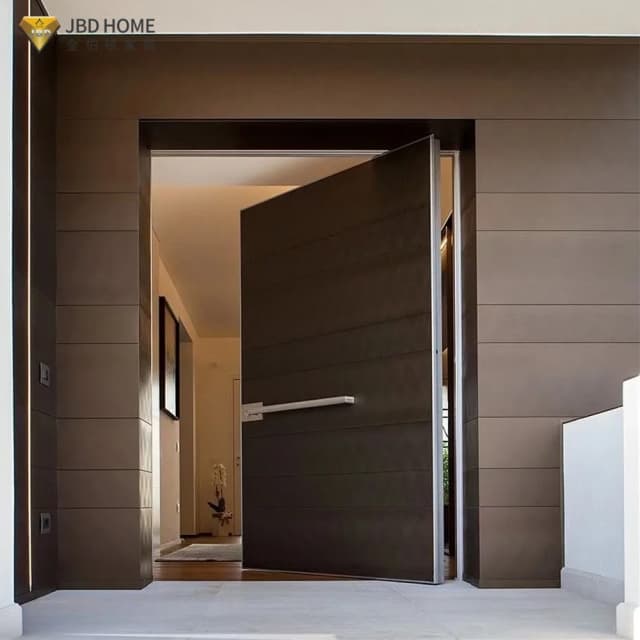

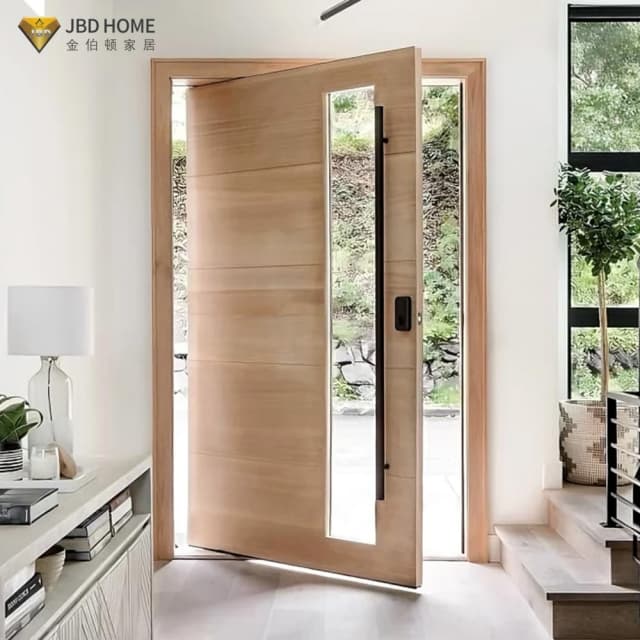

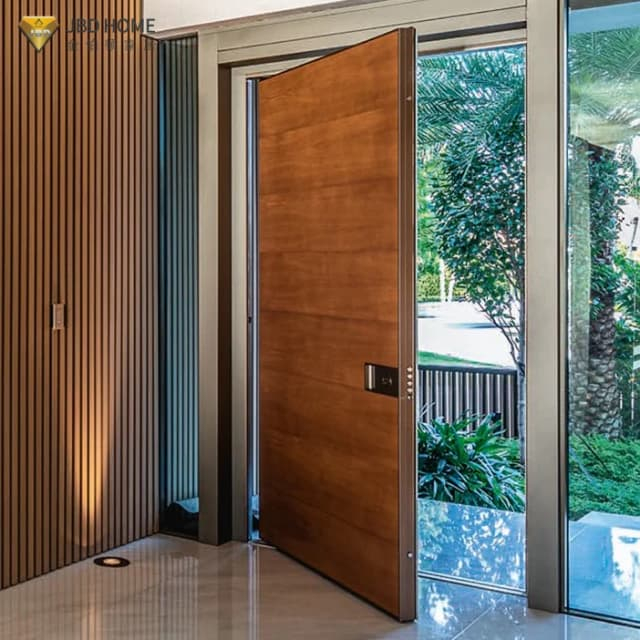

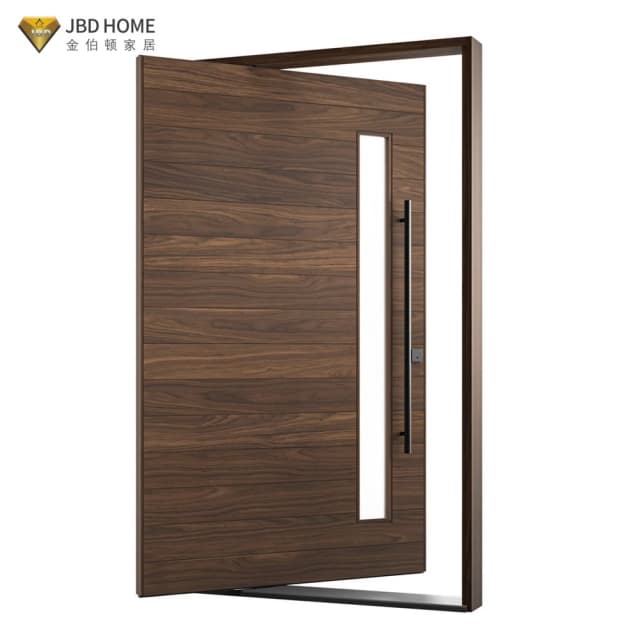

Pivot entry wooden doors are premium residential exterior doors featuring a heavy-duty concealed pivot hinge system that enables smooth, silent rotation and a striking architectural presence. Constructed with a multi-layer composite or high-density fire-retardant core and finished with natural wood veneer or weather-resistant paint, they offer excellent dimensional stability, moisture resistance, and thermal insulation. Standard features include 3D-adjustable stainless steel pivot hardware, multi-point locking, and EPDM perimeter seals—delivering air/water tightness and sound insulation up to 35 dB. Ideal for villas, townhouses, and luxury apartments, these doors meet international certifications including CE and CSA, combining security, energy efficiency, and timeless elegance.
Product Advantage
1. Our pivot entry doors utilize a heavy-duty concealed stainless steel pivot system rated for over 200,000 cycles and capable of supporting door panels up to 180 kg (400 lbs). Unlike traditional hinges, the top-and-bottom pivot design distributes weight evenly, enabling smooth, silent rotation with minimal wear—ideal for high-end residential entrances that demand both drama and durability.
2. Engineered with a multi-layer cross-laminated core and moisture content controlled to 8–10%, these doors resist warping, cracking, and swelling even in climates with humidity levels up to 75% RH. Independent testing confirms dimensional stability with <0.6% warpage after 30 days of accelerated aging—significantly outperforming standard solid wood entry doors.
3. Achieving sound insulation up to 35 dB (per ISO 10140-2) and U-values as low as 1.6 W/(m²·K), our doors integrate EPDM compression seals and optional thermal breaks to enhance energy efficiency. This meets passive house standards in mild climates and reduces heating/cooling loads—making them a smart choice for sustainable luxury homes.
4. Security is reinforced with a multi-point locking system (3–5 locking points) compliant with EN 12209 Grade 3, paired with anti-drill strike plates and optional laminated security glass. The pivot mechanism itself is tamper-resistant and fully enclosed within the floor and header, eliminating exposed hinge vulnerabilities common in conventional entry doors.
Technical Parameters
| Parameter | Specification |
| Door Type | Single-leaf pivot swing door (inward or outward rotation) |
| Pivot System | Concealed top-and-bottom stainless steel pivot hinges (304/316 grade) |
| Max Door Weight Capacity | 180 kg (400 lbs) |
| Max Door Dimensions | Height:up to 2,600 mm (102”) Width:up to 1,200 mm (47”) |
| Standard Thickness | 50 mm / 60 mm (custom options available) |
| Core Construction | Multi-layer engineered wood or high-density fire-retardant composite (≥700 kg/m³) |
| Face Material | Natural wood veneer (oak,walnut,teak) or UV-stable exterior-grade paint |
| Moisture Resistance | Stable at ≤75% relative humidity;moisture content controlled to 8–10% |
| Sound Insulation (Rw) | Up to 35 dB (tested per ISO 10140-2) |
| Thermal Transmittance (U-value) | 1.6 – 2.0 W/ |
(depending on glazing and core) | |
| Air Permeability | Class 4 (≤3 m³/h·m² @ 100 Pa) – EN 12207 |
| Water Tightness | Class E1500 (resists driving rain up to 1500 Pa) – EN 12208 |
| Wind Load Resistance | ≥2,400 Pa (suitable for coastal and high-rise applications) – EN 12210 |
| Locking System | Multi-point lock (3–5 points),EN 12209 Grade 3 compliant |
| Sealing System | Triple EPDM compression seals (perimeter + threshold) |
| Fire Rating (Optional) | FD30 / FD60 available with intumescent seals and certified core |
| Certifications | CE,CSA,NOA,AS2047,NFRC (for glazed units) |
| Warranty | 5-year structural & hardware warranty;2-year finish warranty |
1. Ideal for luxury villas, pivot entry doors create a dramatic first impression with seamless operation, premium wood finishes, and robust security—enhancing both aesthetics and curb appeal.
2. Perfect for modern townhouses with limited facade space, these doors swing open without tracks, offering minimalist style, excellent insulation, and smooth functionality in compact urban settings.
3. Used in high-end apartments, they provide sound insulation up to 35 dB, multi-point locking, and sleek design—meeting CE and CSA standards for safety and performance in residential lobbies.
4. Built for coastal homes, they resist salt, UV, and wind loads up to 2,400 Pa, with sealed edges and corrosion-resistant hardware ensuring long-term durability in harsh seaside environments.
5. Suited for sustainable projects, their low U-value (down to 1.6 W/m²·K) and optional thermal breaks improve energy efficiency, supporting green building goals without sacrificing elegance or function.
Pivot entry wooden doors operate smoothly with a gentle push—no handles or complex mechanisms needed. Ensure the pivot hinges are properly aligned during installation and avoid excessive force when opening or closing. Keep the floor and top pivot recesses clean and free of debris to maintain seamless rotation. Periodically check hardware tightness and lubricate pivot points annually for quiet, effortless movement and long-term performance.
Q1: Are pivot doors harder to install than traditional hinged doors?
Yes. Pivot doors require reinforced floor and header structures to support full door weight. Precise leveling and alignment are critical. Professional installation is strongly recommended to ensure smooth operation and long-term performance of the concealed pivot system.
Q2: Do pivot doors seal well against weather and noise?
Yes. Equipped with triple EPDM compression seals and a rebated threshold, they achieve water tightness Class E1500 (EN 12208) and sound insulation up to 35 dB—matching or exceeding high-performance hinged entry doors when correctly installed.
Q3: Can pivot doors swing both inward and outward?
The pivot system can be configured for inward, outward, or bidirectional swing (with center-stop option). The direction is finalized during installation based on spatial layout, climate exposure, egress requirements, and local building codes.
Q4: Are they secure against forced entry?
Yes. Multi-point locking (3–5 points), anti-drill strike plates, and fully concealed hinges—unremovable from outside—provide robust security. Systems comply with EN 12209 Grade 3, offering superior resistance compared to standard hinged entry doors.
Q5: What maintenance do pivot doors require?
Minimal: clean surfaces with a damp cloth, keep pivot recesses debris-free, and inspect hardware annually. Lubricate top/bottom pivot bearings every 12–18 months with silicone-based grease to maintain smooth, silent rotation over decades of use.
