The Architectural Shift Toward Seamless Indoor-Outdoor Living

Modern commercial and luxury residential architecture places strong emphasis on blurring the boundaries between interior living zones and exterior environments. Traditional hinged doors offer limited walk-through clearances, while standard two-track sliding door systems can only open up to 50% of the total aperture.

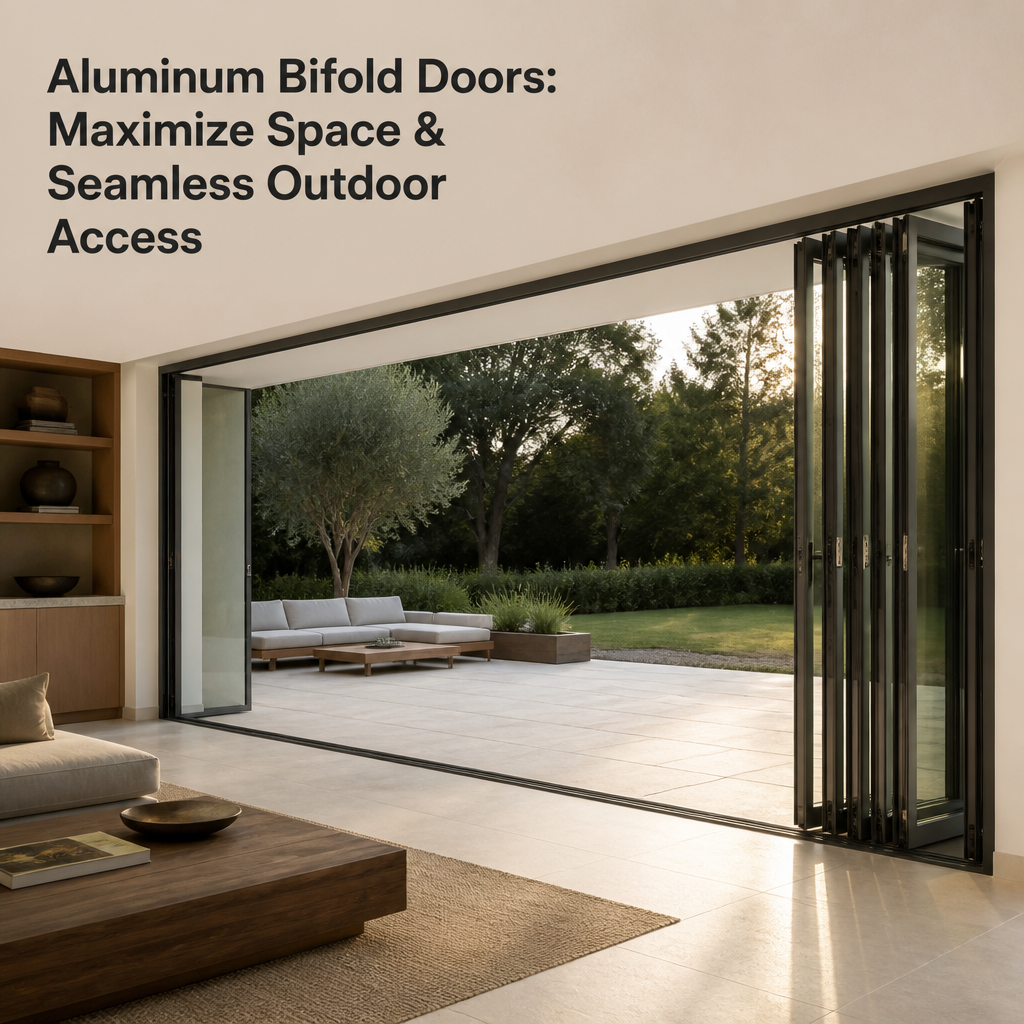

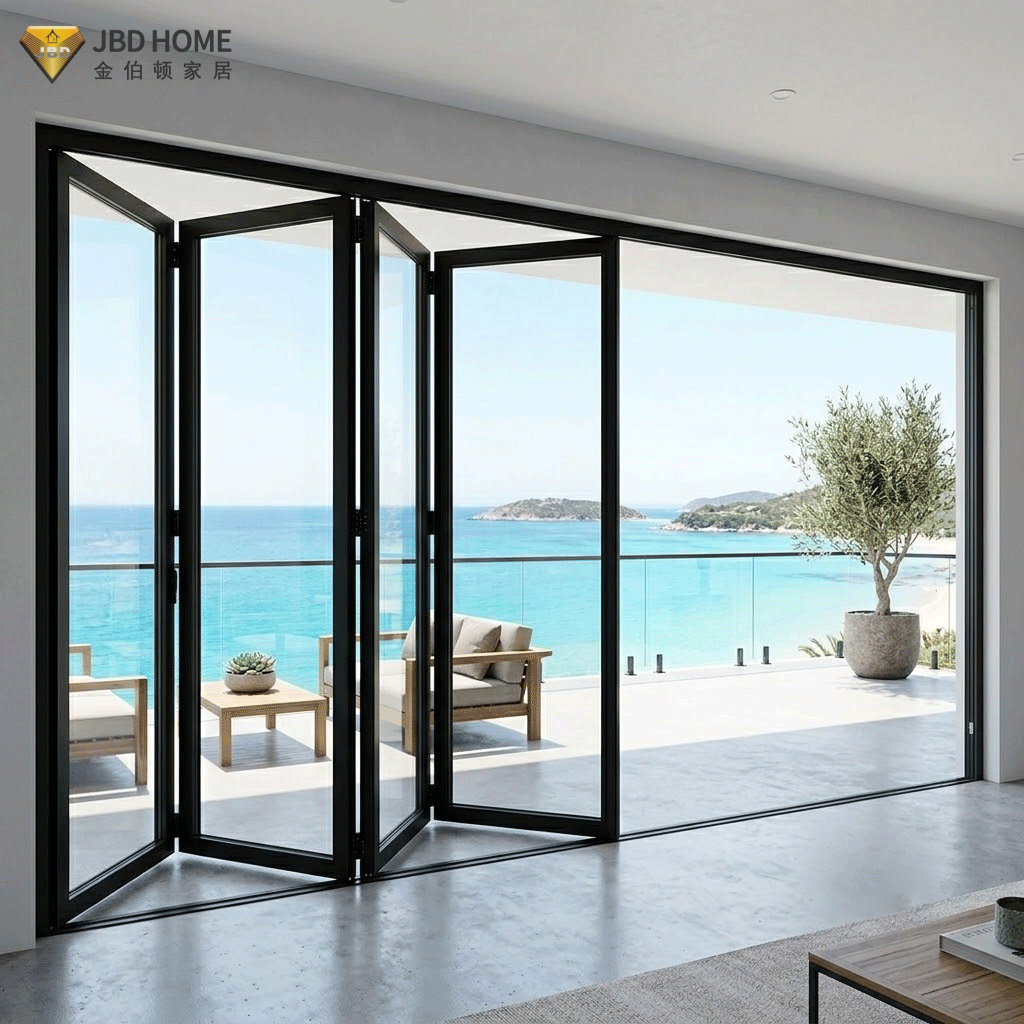

Multi-panel aluminum bifold doors, also recognized as folding glass patio doors or accordion wall systems, completely eliminate these structural barriers. By allowing multiple glass leaves to fold, slide, and stack compactly against side walls, bifold systems deliver up to a 90% unobstructed clear opening.

1. Key Application Scenarios

• Hospitality & Dining Terraces: Convert indoor dining into open-air spaces to boost customer capacity, improve natural airflow, and increase foot traffic.

• Luxury Villas & Patios: Seamlessly merge living rooms with gardens, verandas, and pool decks without visual clutter.

• Retail Showrooms: Deliver wide openings for smooth vehicle movement, bulk product staging, and pedestrian access.

• Interior Space Dividers: Quickly divide open corporate halls and conference areas into functional private meeting zones.

2. Core Engineering Features

• Top-Hung Roller System: Heavy-duty quad-bearing stainless steel rollers suspend panel weight from the top beam, ensuring effortless glide and low floor-track debris.

• Thermal Break Technology: Multi-cavity PA66 GF25 insulation strips paired with Low-E glass deliver low Uw values below 1.8 W/m2K and prevent condensation.

• Weather & Acoustic Sealing: Continuous EPDM gaskets and multi-point perimeter locking provide Class 4 air tightness and 900 Pa water resistance.

• Flush Thresholds & Anti-Pinch Safety: Sub-floor drainage tracks create smooth, zero-step transitions, while continuous rubber buffers protect fingers during operation.

3. Technical Manufacturing Specifications

• Material & Profile: Extruded 6063-T5/T6 aluminum with 2.0 mm structural wall thickness.

• Panel Limits & Load: Up to 1100 mm (W) × 3500 mm (H) per leaf; supports up to 150 kg per sash.

• Glazing: Compatible with 24 mm to 36 mm double or triple tempered safety glass.

• Surface Finishes: Qualicoat powder coating, AAMA 2605 PVDF coating, or marine-grade anodizing.

• Performance Ratings: Wind Load (Class C5 / 3000 Pa), Air Tightness (Class 4), Water Tightness (900 Pa).

4. B2B Sourcing Guidelines for Contractors

• Header Deflection Limits: Verify that overhead structural beam deflection stays within L/500 under full load to prevent top-track binding.

• Traffic Door Configuration: Choose odd-panel setups (e.g., 330, 550, 431) to include a single daily floding door for quick access without opening all panels.

• Coastal Corrosion Protection: Specify marine anodizing or PVDF finishes with Grade 316 stainless steel hardware for beachfront and high-humidity environments.

Why Choose JBDHOME?

Dedicated sales managers available to guide you through every step with full-process service.

100% Made-to-Measure

Every folding door system is strictly manufactured according to your exact structural blueprints and local wind load demands.

Global Compliance

Certified to match leading architectural standards, including Australia's AS2047, North America's NFRC, and Europe's CE compliance benchmarks.

Heavy-Duty Sea Freight Packaging

All shipments are wrapped in pearl cotton padding with corner protectors and crated into heavy-duty, fumigation-free plywood boxes to eliminate shipping damages.
