ALUMINUM CASEMENT WINDOW
Side-Hinged Opening.
Secure Multi-Point Locking.

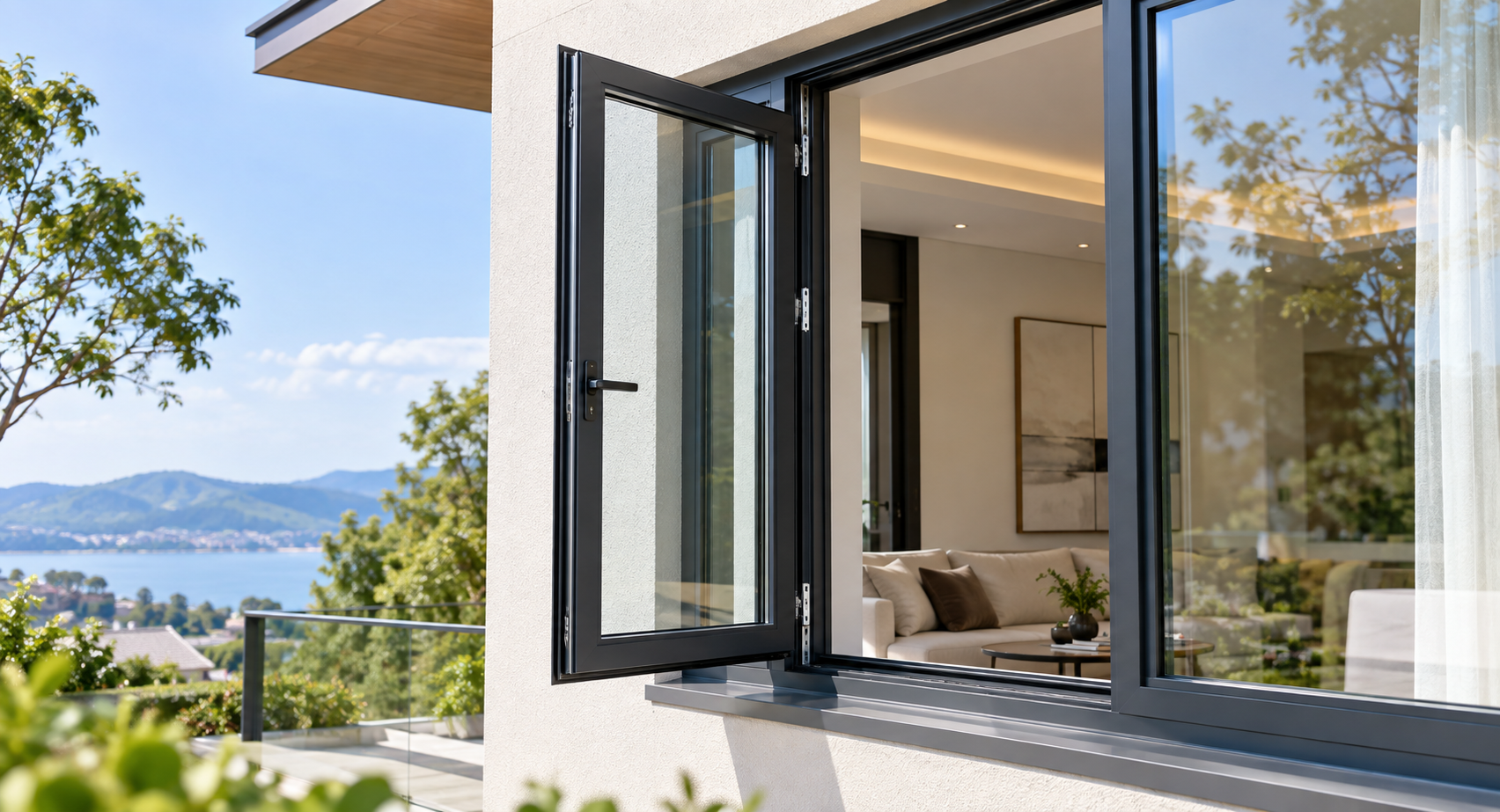

A custom aluminum casement window combines side-hinged operation with a multi-point locking system for residential and building projects. Frame dimensions, glazing, opening direction and finishes can be configured according to confirmed project requirements.
SIDE HINGED / MULTI-POINT LOCK / CUSTOM GLAZING / MADE TO MEASURE
01 / OPENING SYSTEM
A Different Way to Open the Window
Unlike a sliding window that moves horizontally along a track, a casement window uses side-mounted hinges to swing the sash open. The opening direction can be configured according to the selected window system and project requirements.
01
Side-Hinged
The sash is connected to the frame through side-mounted hinges.
02
Swing Opening
A practical opening method for residential ventilation and everyday use.
03
Custom Direction
Opening direction is confirmed according to drawings and project requirements.
02 / LOCKING SYSTEM
More Than a Single Locking Point

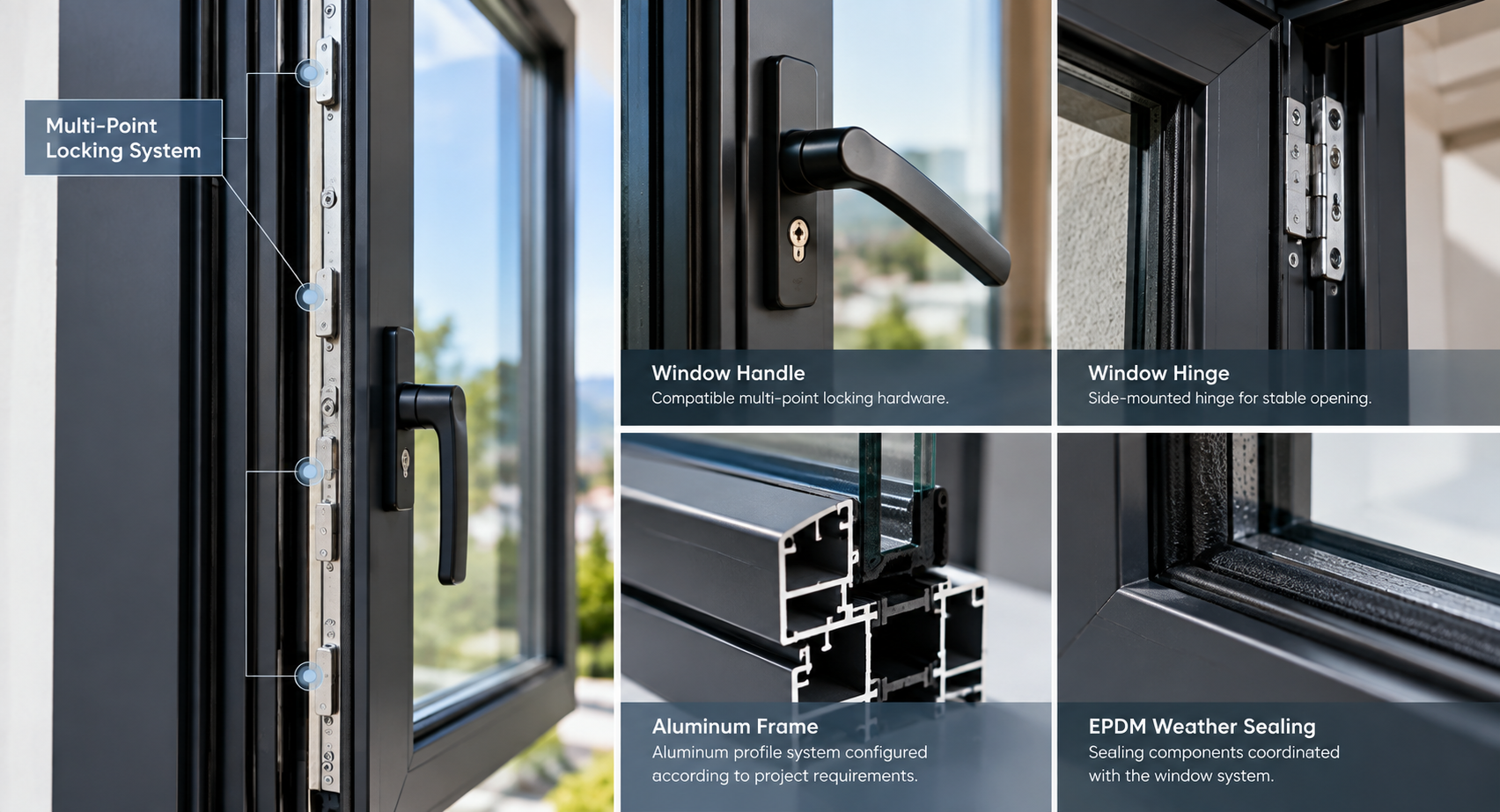

A compatible multi-point locking system engages the sash and frame at multiple positions when the window is closed. The hardware works together with the frame and sealing system to create a coordinated casement window assembly.
Handle Operation Centralized operation of the compatible locking hardware.
Multiple Lock Points Locking positions distributed along the sash and frame.
Frame Connection Hardware selected to match the compatible aluminum window system.
Sealing Contact Coordinated with the frame and sealing configuration.
03 / WINDOW DETAILS
Details Behind the Window System
Aluminum Frame Aluminum profile system configured according to project requirements.
Glazing Options Double glazing, Low-E and other compatible glass configurations.
EPDM Sealing Sealing components coordinated with the selected frame system.
Casement Hardware Hinges, handle and locking hardware selected for the window configuration.
04 / CUSTOM CONFIGURATION
Built Around Your Window Schedule
Casement windows can be configured according to architectural openings, glass requirements, finish selections and the required opening direction. Final specifications are confirmed before custom production.
Opening Type Side Hinged / Swing
Locking Compatible Multi-Point Locking System
Glass Double / Low-E / Custom
Finish Powder Coating / Custom Color
Dimensions Made to Measure
05 / CASEMENT VS SLIDING
Which Opening Style Fits Your Project?
Casement Window
Side-hinged sash that swings open.
Suitable where a swing-opening window and ventilation are required.
Sliding Window
Sash moves horizontally along the window track.
Suitable where minimizing inward or outward swing space is important.
06 / APPLICATION
For Residential and Building Projects
Villa Custom residential openings
Apartment Window schedule supply
Custom Home Made-to-measure windows
Building Project Project-based configurations
07 / PROJECT SUPPLY
From Opening Dimensions to Production
For an accurate project quotation, send us your window schedule, opening dimensions, opening direction, glass requirements, finish, quantity and project location.
01 Project Drawings → 02 Window Configuration → 03 Detail Confirmation → 04 Custom Production → 05 Inspection & Packaging
08 / PROJECT FAQ
Aluminum Casement Window Questions
What is an aluminum casement window? It is an aluminum-framed window with a sash hinged at the side, allowing the sash to swing open rather than slide along a track.
What is a multi-point locking casement window? It uses compatible locking hardware that engages the sash and frame at multiple positions when the window is closed.
Can the opening direction be customized? Opening direction can be confirmed according to the selected window system, architectural drawings and project requirements.
What glass can be used in an aluminum casement window? Compatible double glazing, Low-E glass and other glass configurations can be selected according to project requirements.
What information is needed for a quotation? Please provide opening dimensions, quantity, opening direction, glass requirements, finish and project location.
CUSTOM WINDOW PROJECT
Have a Window Schedule Ready?
Send us your dimensions, opening direction, glass requirements and project quantity for a customized aluminum casement window solution.
SEND YOUR PROJECT DETAILS
