Double Glazed vs Triple Glazed Windows: Which Glass System Fits Your Project?

Selecting the optimal glazing system is a crucial decision for modern residential and commercial building projects. While both double glazed and triple glazed windows utilize advanced insulated glass units (IGUs) with Low-E coatings and argon gas fills, they deliver significantly different levels of thermal efficiency, sound insulation, and structural performance.

Before placing a bulk order, real estate developers, architects, and contractors should compare factors such as U-value ratings, soundproofing requirements, structural load limits, and project climate conditions.

1. Quick Comparison Overview

2. Key Differences in Performance and Engineering

Energy Efficiency & Thermal Performance

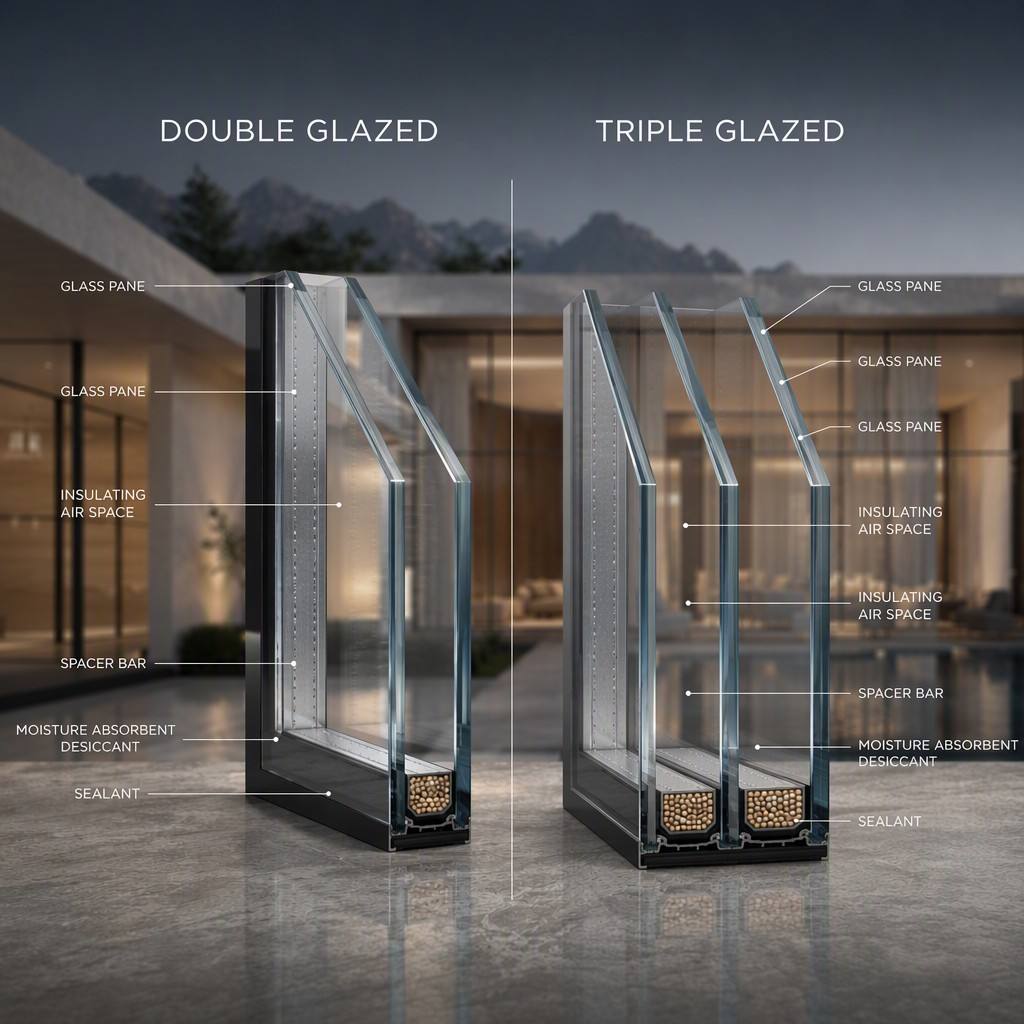

• Double Glazed Units (IGUs): Feature two glass panes separated by an aluminum or warm-edge spacer bar filled with argon gas. They effectively reduce heat transfer and satisfy standard energy code compliance in most temperate regions.

• Triple Glazed Units (IGUs): Incorporate three glass panes creating two insulated air pockets. This setup dramatically lowers the window's overall thermal transmittance (value), minimizing cold bridge effects, winter radiant heat loss, and interior condensation.

Structural Weight & Hardware Requirements

• Double Glazed Windows: The lighter glass mass puts less strain on window frames, hinges, and rollers, allowing for larger individual sash dimensions and wider sliding panels.

• Triple Glazed Windows: The extra pane adds approximately 10 kg per square meter. This requires reinforced aluminum profiles, multi-point heavy-duty hinges, and strict weight-capacity checks during frame engineering.

3. Climate Suitability & Project Location

If your construction project is located in an area with extreme weather conditions or strict green building certifications, glass selection should be evaluated early:

• Moderate & Cost-Sensitive Projects: Double glazing provides the optimal balance between manufacturing costs, energy performance, and ease of installation for general residential and commercial developments.

• Cold Regions, High-Noise Areas & Passive Buildings: Triple glazing is ideal for projects aiming for Passive House (Passivhaus) standards, luxury residential villas, or buildings near airports, highways, and bustling downtown districts.

4. What to Send Before Quotation

To help our engineering team design the correct glass configuration and calculate accurate factory-direct pricing, please provide the following project details:

1. Window Schedule & Elevations: Architectural plans specifying window types, dimensions, and sash operations.

2. Performance Specifications: Target $U$-value, Solar Heat Gain Coefficient (SHGC), or Sound Transmission Class (STC) ratings.

3. Glass Makeup Preferences: Preferred pane thickness , Low-E coating positioning, and glass types (tempered, laminated, or tinted).

4. Frame Specifications: Thermal break aluminum profile thickness, powder coating or anodized finish details.

5. Destination Country & Local Codes: Helps our team verify compliance with local structural wind-load requirements and energy standards (e.g., CE, NFRC, AS2047).

Ready to Start Your Project?

Get expert technical support to select the ideal glass configuration for your building’s envelope design.

Next Step: Send your window schedule and specifications to our technical engineering team today for a free thermal analysis and factory-direct quotation!
