A technical specification guide evaluating profile structure, roller hardware, track systems, and glass options.

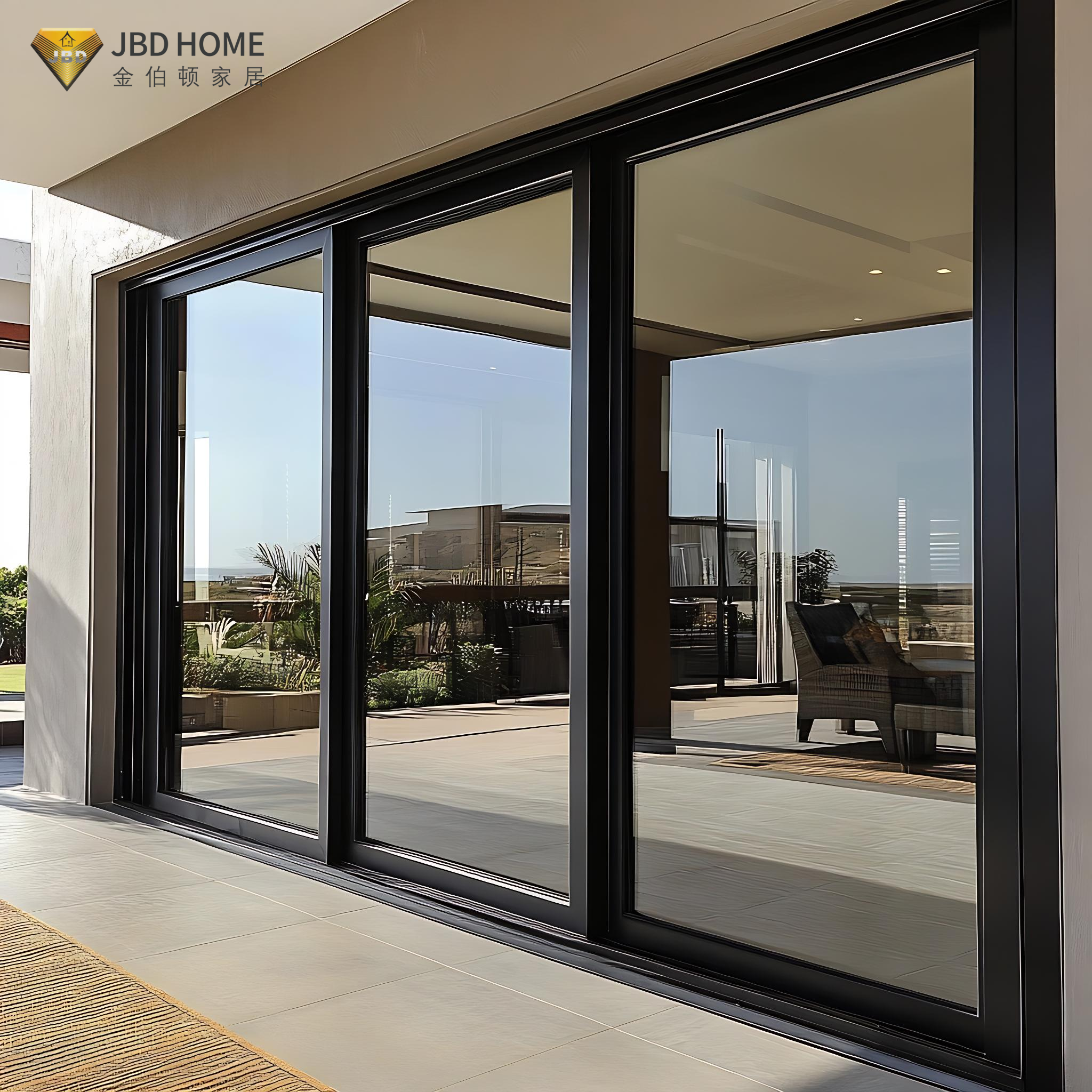

Aluminum sliding doors are widely used in modern residential and commercial projects for their slim sightlines, space-saving design, and expansive outdoor views. However, selecting improper profile wall thickness, cheap rollers, or poorly designed track drainage can cause operational drag, water leakage, or frame deformation over time. Here is how to specify the right sliding door system.

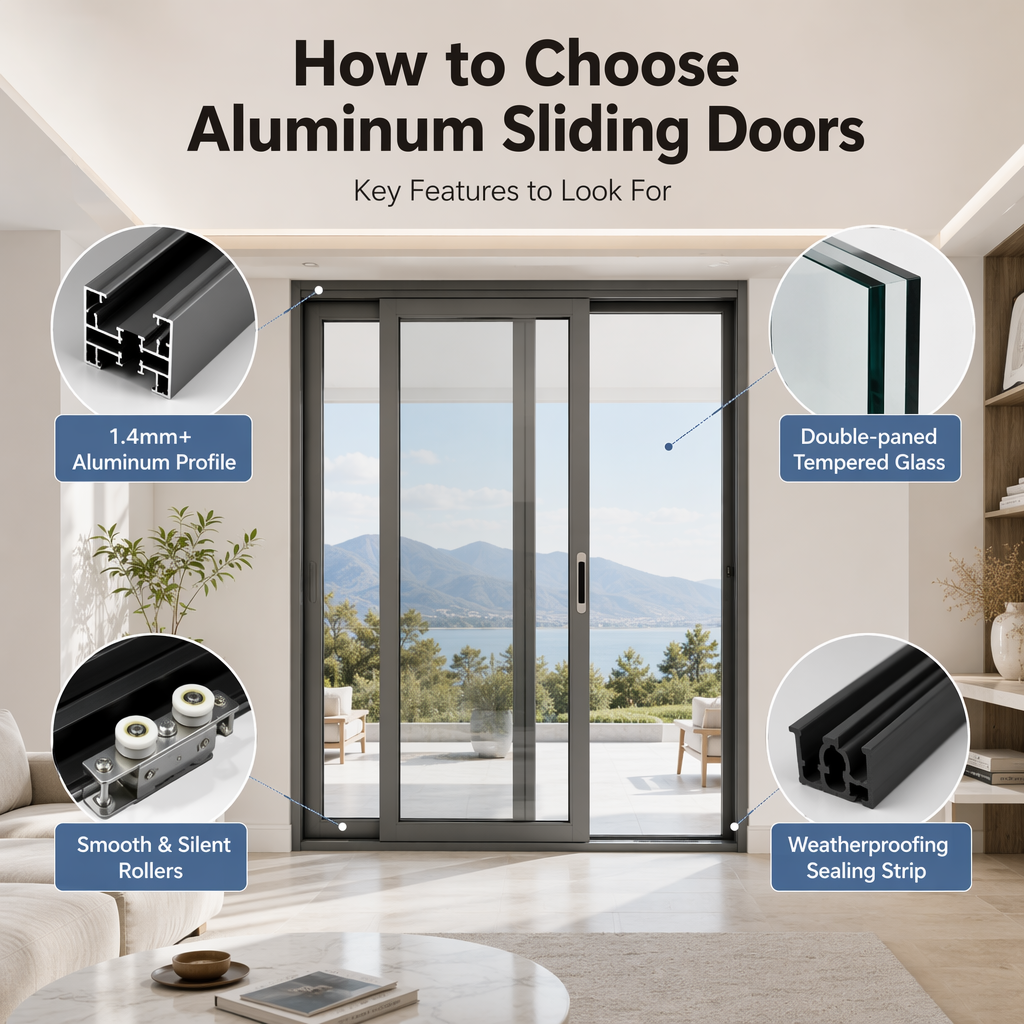

Structural integrity depends heavily on the aluminum profile specification. For large-span patio sliding doors, choosing structural grade aluminum alloys with adequate wall thickness is critical to withstand high wind loads.
Key Profile Checkpoints:
Profile Thickness: Ensure primary structural walls meet at least 2.0mm thickness for exterior sliding doors.
Thermal Break Struts: Choose polyamide (PA66) thermal insulation strips to prevent thermal bridging and save energy.
Aluminum Alloy Grade: Look for high-precision 6063-T5 or T6 aluminum for superior strength and corrosion resistance.
Depending on panel dimensions and performance requirements, different sliding operating systems offer distinct benefits.
Classic bottom-roller sliding system suitable for standard patio and balcony openings, balancing cost and durability.
Ultra-slim interlocking sightlines (down to 20mm) that maximize natural light and deliver a sleek contemporary aesthetic.
Mechanism lifts the door panel off the weather seals when operating, enabling effortless gliding for oversized panels up to 400kg.
The track system and rollers determine both smooth operation and weather resistance. Stainless steel tracks combined with heavy-duty twin stainless steel rollers prevent jumping and operational noise. For coastal or rainy regions, specifying concealed multi-stage drainage tracks ensures rainwater flows outward quickly without back-siphoning into the room.
Use this evaluation checklist when selecting sliding door configurations with your manufacturer:
Feature Checklist | Verification Focus |
|---|---|
Profile & Finish | Is the aluminum powder coating or anodizing certified for UV and salt spray resistance? |
Hardware & Rollers | Are the rollers made of stainless steel or heavy-duty nylon rated for the panel weight? |
Glass Glazing | Is double toughened safety glass specified (e.g., 6mm + 12A + 6mm Low-E)? |
Track Drainage | Does the sill design feature high-and-low water barrier tracks or hidden drainage holes? |
Security Locks | Are multi-point locking systems and anti-lift blocks installed to prevent forced entry? |
