Modern architectural designs require building envelopes to perform reliably under severe meteorological conditions. For developers, architects, and general contractors executing projects in extreme regions—from scorching desert environments to frigid sub-zero zones—selecting high-performance thermal break aluminum systems is vital for reducing energy consumption and maintaining interior occupant comfort.
Standard aluminum profiles, while structural and durable, are natural thermal conductors. Without proper thermal insulation barriers, uninsulated frames create significant thermal bridges that lead to massive HVAC load strain, internal surface condensation, and accelerated interior material degradation. Below is an engineering analysis of how thermal break technology mitigates these issues across climate extremes.

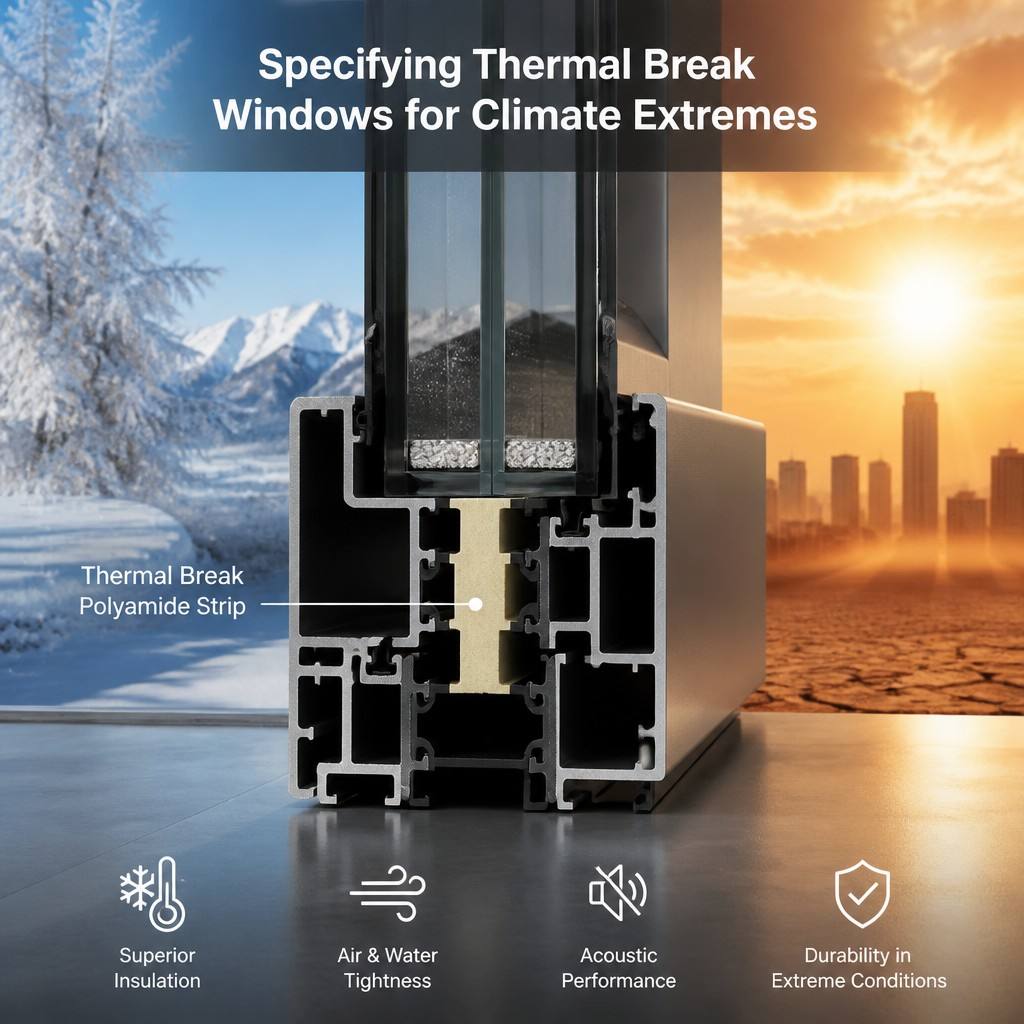

The foundation of any energy-efficient aluminum window system relies on the structural separation of the inner and outer aluminum extruded profiles. This barrier is formed using PA66 polyamide thermal strips reinforced with 25% fiberglass for structural integrity.
Engineering advantages of PA66 polyamide insulation strips include:
Low Thermal Conductivity: Polyamide features a thermal conductivity rate significantly lower than raw aluminum extrusions, effectively stopping heat transfer.
Thermal Expansion Matching: The thermal expansion coefficient of PA66 closely mimics that of aluminum, preventing structural degradation or seal separation under intense ambient temperature fluctuations.
Multi-Cavity Chamber Design: Advanced profiles incorporate multi-chamber polyamide struts filled with insulated foam to further minimize convection within the frame assembly.
In equatorial and desert regions, the primary thermal challenge is solar radiant heat gain and continuous high ambient temperatures. Windows specified for tropical applications must prioritize blocking solar radiation while keeping air-conditioned indoor air cold.
Key technical configurations for tropical projects include:
Low Solar Heat Gain Coefficient (SHGC): Utilizing double-glazed units with spectrally selective solar-control Low-E coatings to reflect infrared radiation while permitting visible light.
Warm Edge Spacer Technology: Replacing traditional aluminum glass spacers with composite warm-edge spacers to eliminate edge-of-glass thermal bridging.
UV and Corrosion-Resistant Gaskets: Specifying EPDM sealing gaskets engineered to withstand prolonged high UV exposure without hardening or cracking.
In cold and arctic zones, preventing interior heat from escaping to the exterior is paramount. Low exterior temperatures paired with warm interior indoor humidity can cause severe condensation on uninsulated frame surfaces if the interior glass temperature drops below the dew point.
Key technical configurations for extreme cold regions include:
Triple Pane Low-E Glazing: Specifying triple-glazed insulated units filled with inert Argon or Krypton gas to achieve exceptionally low U-factors.
Wide Polyamide Thermal Strips: Expanding the width of the polyamide strip (e.g., 24mm to 39mm or wider) to increase the physical distance between exterior and interior metal surfaces.
Multi-Point Compression Locking: Ensuring continuous pressure along multi-point locking hardware to achieve airtight seals and eliminate drafts under freezing wind loads.
Climate Category | Primary Engineering Objective | Target Metric Focus | Recommended Glazing Assembly |
|---|---|---|---|
Extreme Tropical / Hot | Solar Heat Rejection & Air Tightness | Low SHGC (< 0.25) | Double Glazed + Solar Control Low-E + Argon Gas |
Extreme Cold / Arctic | Interior Thermal Retention & Anti-Condensation | Low U-Value (< 0.8 W/m²K) | Triple Glazed + Dual Low-E + Warm Edge Spacers |
Mixed / Temperate | Balanced Seasonal Heating & Cooling Efficiency | Balanced U-Value & SHGC | Double Glazed + Single Low-E Coating |
When specifying thermal break aluminum windows for severe regional climates:
Cross-Check Local Energy Codes: Ensure specified overall window U-values and SHGC metrics comply with mandatory municipal building performance standards (e.g., ASHRAE, Title 24, or EU Energy Performance of Buildings Directive).
Verify Thermal Break Widths: Request shop drawings detailing the millimeter width and cavity structure of the PA66 polyamide insulation strips within the frame profile.
Demand Third-Party Thermal Simulations: Validate window thermal calculations through accredited lab reports (such as NFRC or certified Passive House simulation data) before starting volume production.
